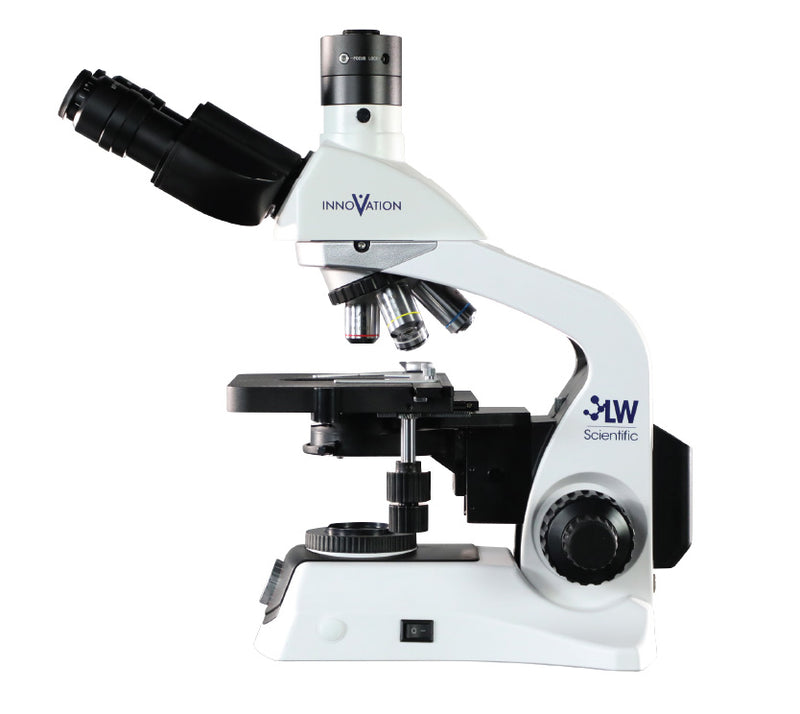

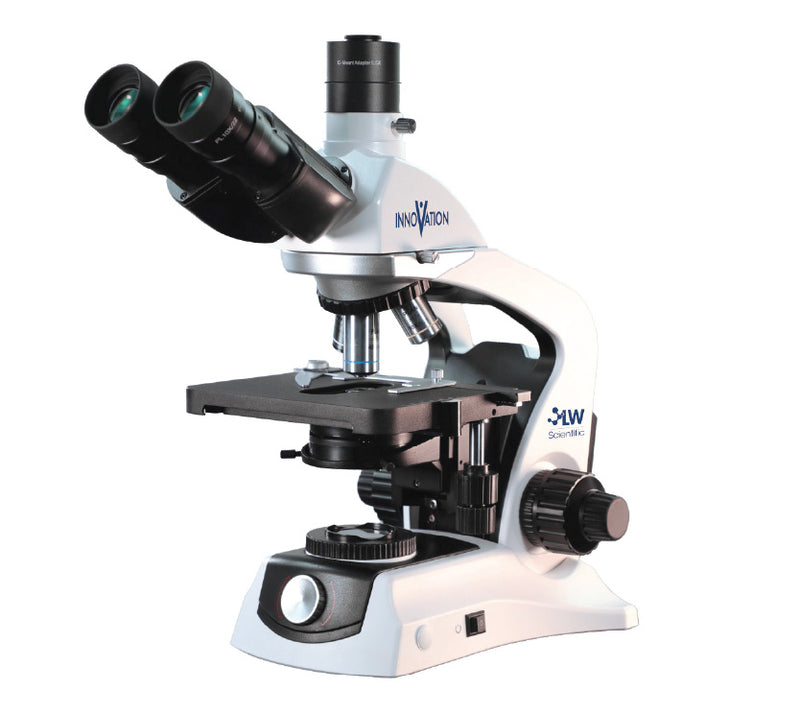

Innovation Biological Microscope

Innovation Microscope is designed for high-precision laboratory work, featuring Infinity PLAN optics and wide-field eyepieces for a flat, high-contrast viewing field. Its durable construction and advanced LED Kohler illumination make it ideal for cytology and other laboratory applications.

Key Features

• Infinity Flat-Field Objectives – Delivers sharp, high-contrast images across the entire field of view.
• Ergonomic Design – Comfortable, low-profile controls reduce strain during extended use.
• LED Kohler Illumination – Uniform, daylight-balanced LED lighting enhances specimen visibility.
• Wide-Field Eyepieces – 10x/22mm eyepieces provide a broad viewing area.
• Lifetime Warranty – Covers optical and mechanical components for long-term reliability.

Optical System

• Head: Binocular (Seidentopf) or Trinocular available
• Eyepieces: 10x/22mm Super-wide-field High-point eyepieces (16x available)
• Interpupillary Distance: 48-75mm
• Diopter Adjustment: +/-5 (built into each eyepiece)
• Nosepiece: Reverse quadruple or quintuple, multiple ball bearing mounted
• Objectives: Infinity High Contrast Plan objectives (4X, 10X, 40XR, 100XR oil)
• Optional Objectives: 20X (in 5-hole model), 50X oil, 60X dry
• Additional Features: Anti-fungal, parfocal, parcentric, color-coded

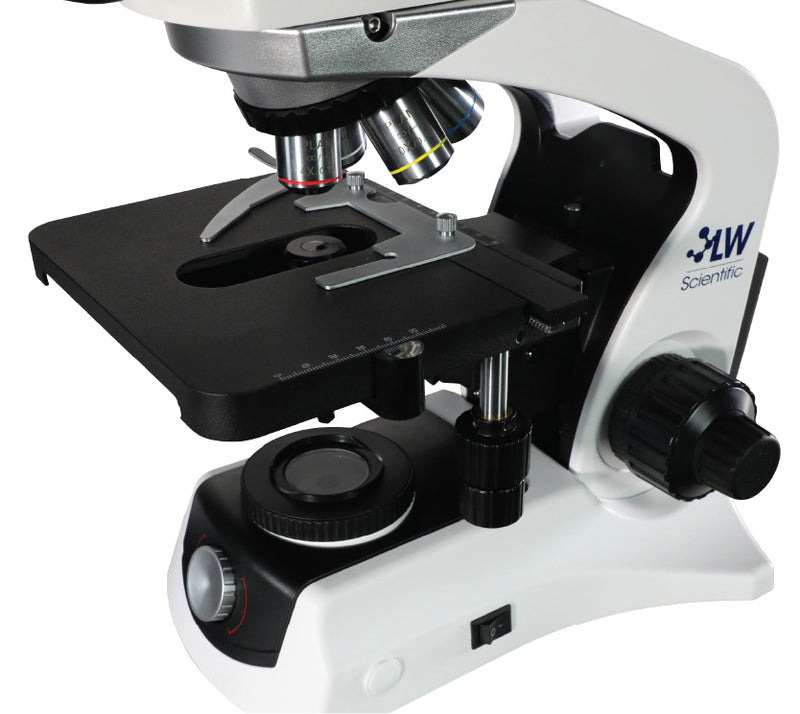

Mechanical Features

• Stage: Double-layer mechanical stage (216mm x 150mm) with graphite-coated surface
• Controls: Coaxial drive controls, rackless design
• Range of Traverse: 75mm x 55mm
• Slide Holder: Slow-close hydraulic slide finger

Focus System

• Coarse Adjustment: 18mm range
• Fine Adjustment: 0.001mm graduation
• Tension Control Knob for precise focusing

Illumination

• System: LED illumination with a 50,000-hour lifespan
• Condenser: Movable Abbe condenser, NA 1.25
• Diaphragm: Iris diaphragm for adjustable light control
• Power: 12V DC / 2A input with 90-240V automatic-switching adapter

Infinity Flat-Field Objectives
Equipped with high-contrast Infinity PLAN objectives, providing flat-field images across the entire view. Available in a 4-objective model (4x-10x-40x-100x) or a 5-objective model (4x-10x-20x-40x-100x).

Ergonomic Design
Designed for comfort, the narrow front and low-positioned controls allow for a more relaxed hand position, reducing strain during extended use.

LED Kohler Illumination
Bright, uniform LED illumination provides daylight-colored light, ensuring accurate color representation of stained specimens. The variable intensity feature enhances brightfield microscopy applications.

Premium Eyepieces
Features 10x/22mm wide-field eyepieces with a 30mm eye-tube diameter, offering an expansive field of view under each objective power.
