DM Dual Mag Stereoscope Series

The DM Dual Mag Stereoscope Series is a high-quality, dual-magnification stereomicroscope designed for laboratories, industrial quality control, and educational use. Built with a durable aluminum alloy frame and ergonomic binocular head, this stereoscope delivers sharp, three-dimensional imaging with precise focusing capabilities. Multiple mounting options provide flexibility for a variety of work environments, from benchtop setups to industrial workstations.

With dual magnification settings and wide-field eyepieces, the DM Dual Mag Series is ideal for biological dissection, circuit board inspection, forensic analysis, and sample preparation. Its smooth rack and pinion focusing system ensures fine adjustments for detailed observation, while optional LED lighting enhances image clarity.

Key Features:

• Dual magnification options of 10X/20X or 10X/30X
• Binocular head with 45° inclination and 360° rotation
• Interpupillary adjustment range of 55-75mm
• Wide-field 10X/20 locked eyepieces
• Durable aluminum alloy construction for long-term use
• Rack and pinion focusing system with adjustable tension
• Multiple mounting options for different work environments

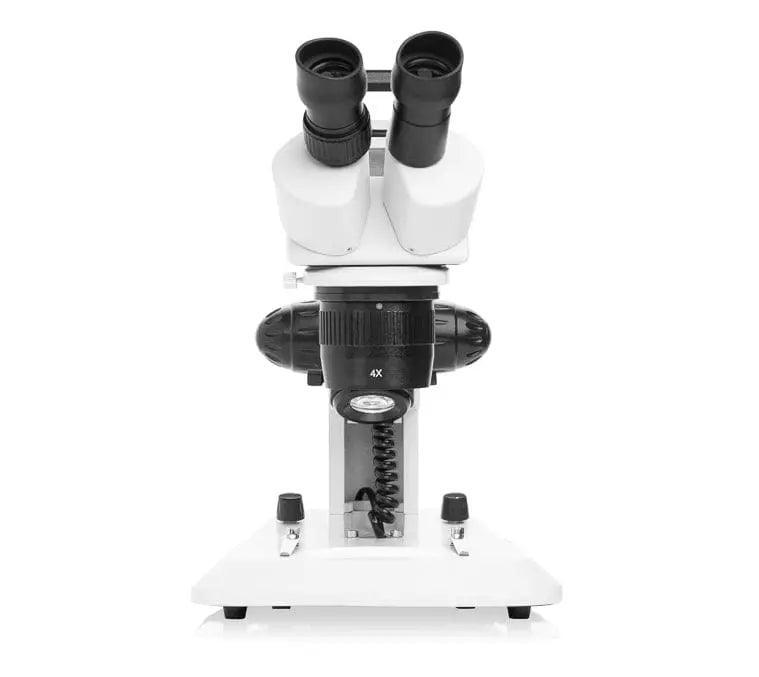

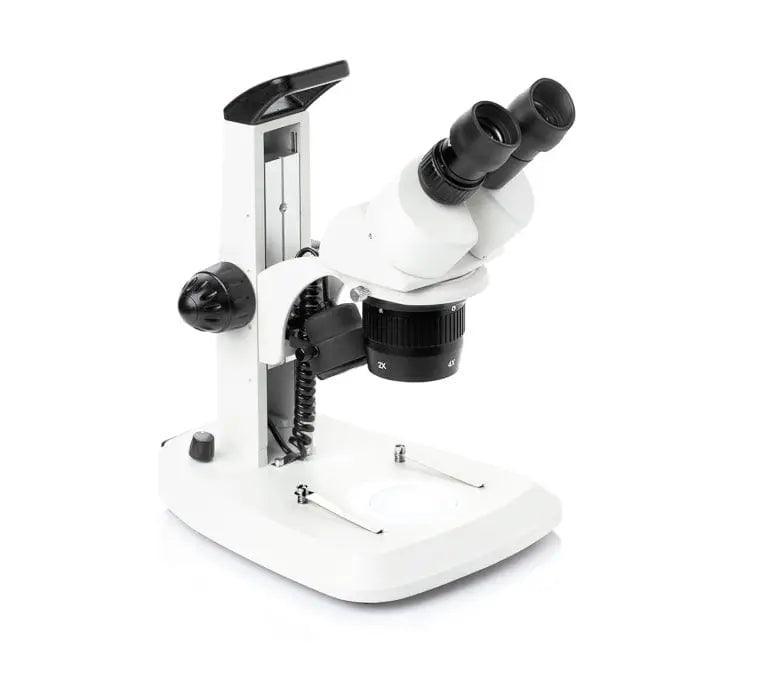

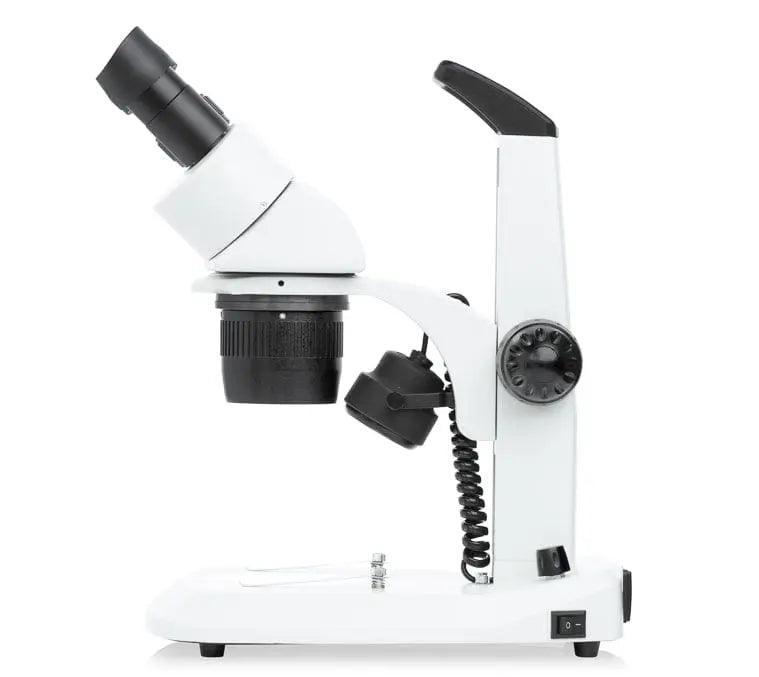

DM on Dual LED: High-Contrast Illumination for Sample Analysis

Designed for laboratories and precision work requiring enhanced visibility, the DM on Dual LED model features integrated top and bottom LED illumination. Its reversible stage plates allow for contrast adjustments based on sample type.

• Magnification: 10X/30X
• Dual LED illumination for clear, well-lit imaging
• Frosted glass and black/white reversible stage plates
• Power supply: 110-220V AC, 50/60Hz
• Weight: 8 lbs, adjustable height from 14” to 17.5”
• Best suited for biological research, forensic analysis, and quality control inspections.

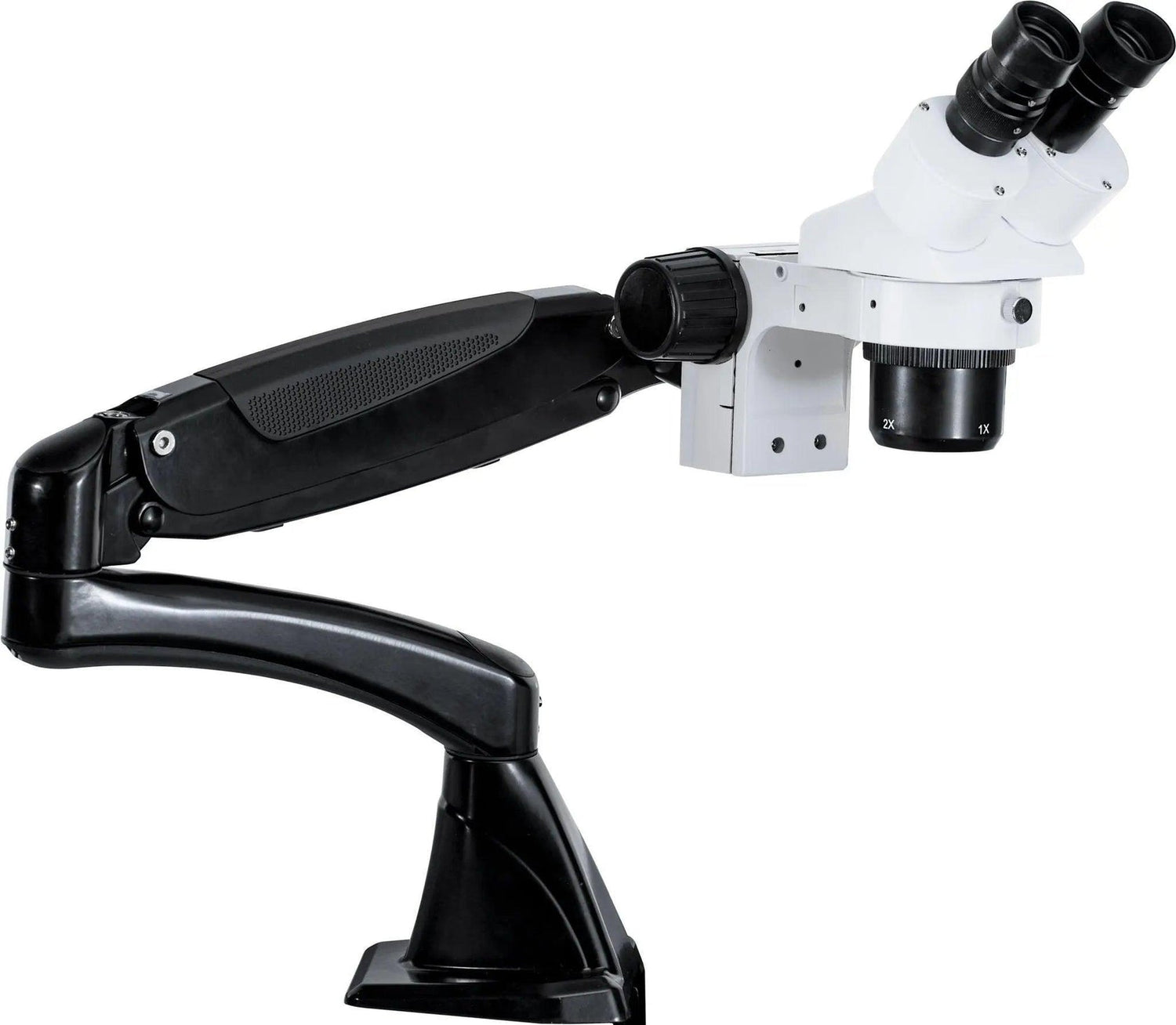

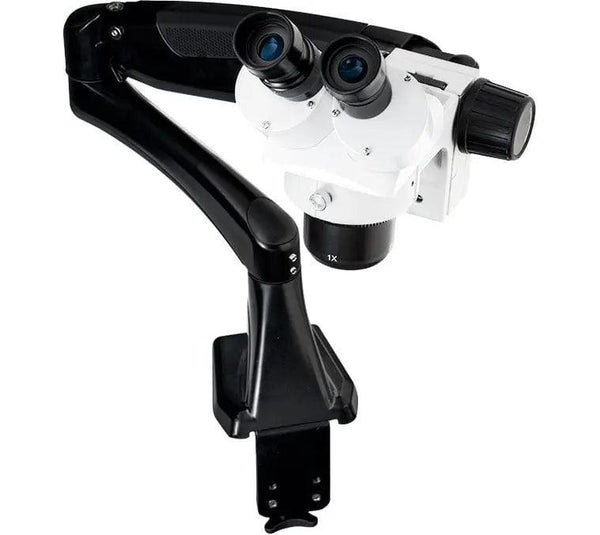

DM on Pneu Flex Arm: Adjustable Positioning for Industrial Applications

Engineered for maximum flexibility, the DM on Pneu Flex Arm model features a pneumatic adjustable arm that allows precise positioning for hands-free operation. The included 0.5X supplementary lens extends the working distance, making it ideal for large or delicate samples.

• Magnification: 10X/20X
• Pneumatic flex arm with adjustable tension for customized positioning
• Extended working distance with included 0.5X supplementary lens
• Optional 48-bulb LED ring light available
• Maximum arm radius: 14.96”, weight: 13.89 lbs
• Ideal for electronics assembly, industrial inspection, and precision repair work.

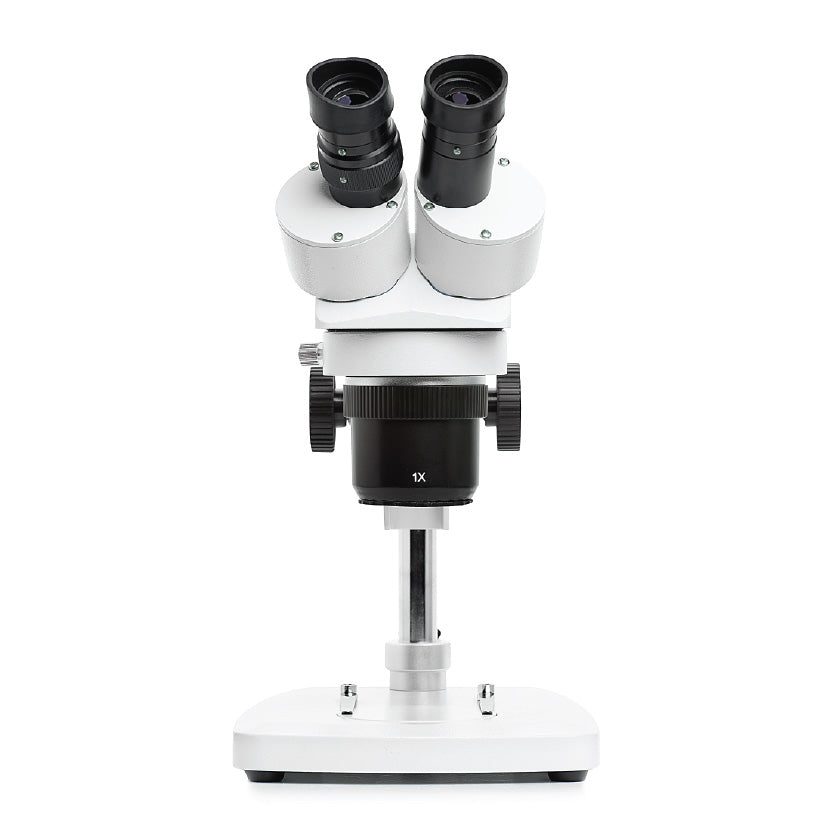

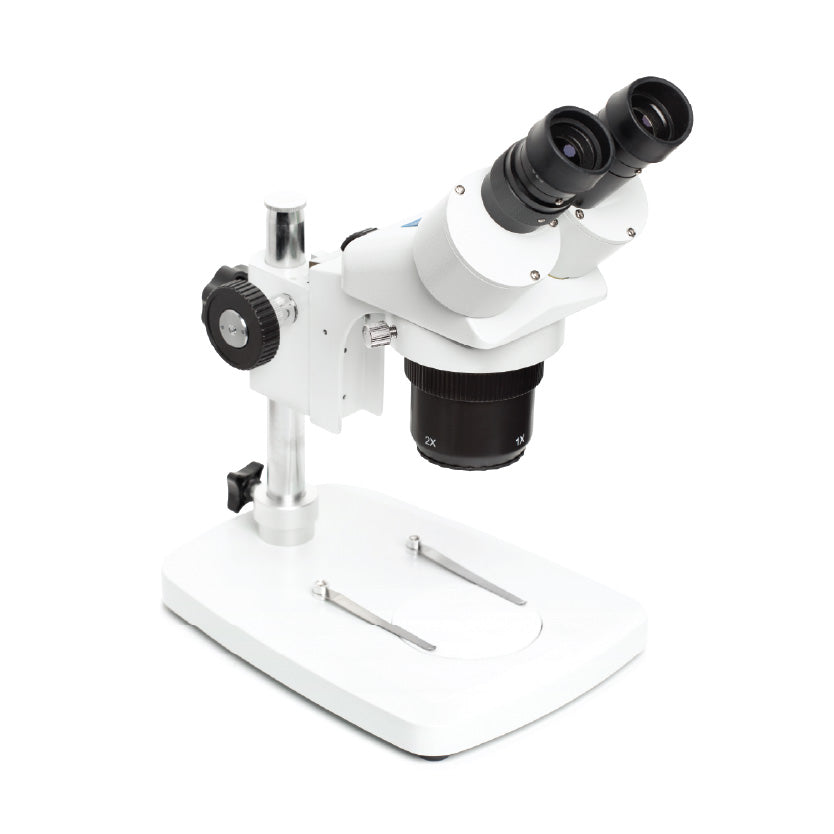

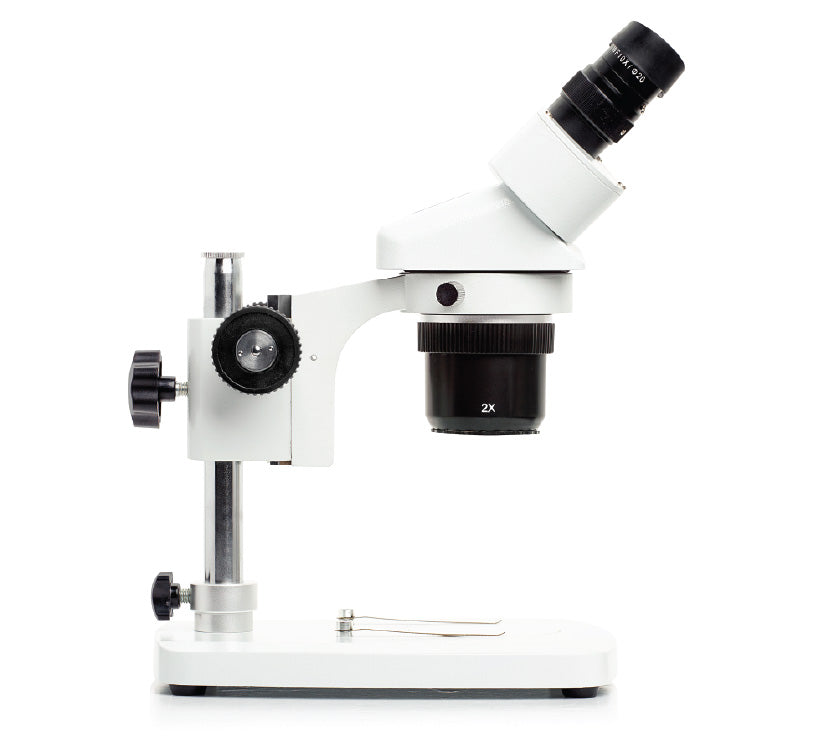

DM on Pole Stand: Stable, Fixed-Position Mounting for Routine Laboratory Use

The DM on Pole Stand model provides a sturdy, fixed mounting option with a 4-inch sample height allowance. Its durable construction and compact footprint make it well-suited for laboratories and educational institutions requiring stable, long-term setup.

• Magnification: 10X/30X
• Sturdy pole stand with adjustable focus
• 4-inch sample height clearance for various specimen sizes
• Optional LED ring light compatibility
• Weight: 9 lbs, height: 12.8”
• Designed for educational labs, routine sample analysis, and biological dissections.

Specifications and Manuals:

• DMM-S13N-7LL3 (Dual LED Model):
  Specifications
  Manual
• DMM-S12N-PA77 (Pneumatic Flex Arm Model):
  Specifications
  Manual
• DMM-S13N-PL77 (Pole Stand Model):
  Specifications
  Manual
